Spray Foam
Spray Foam

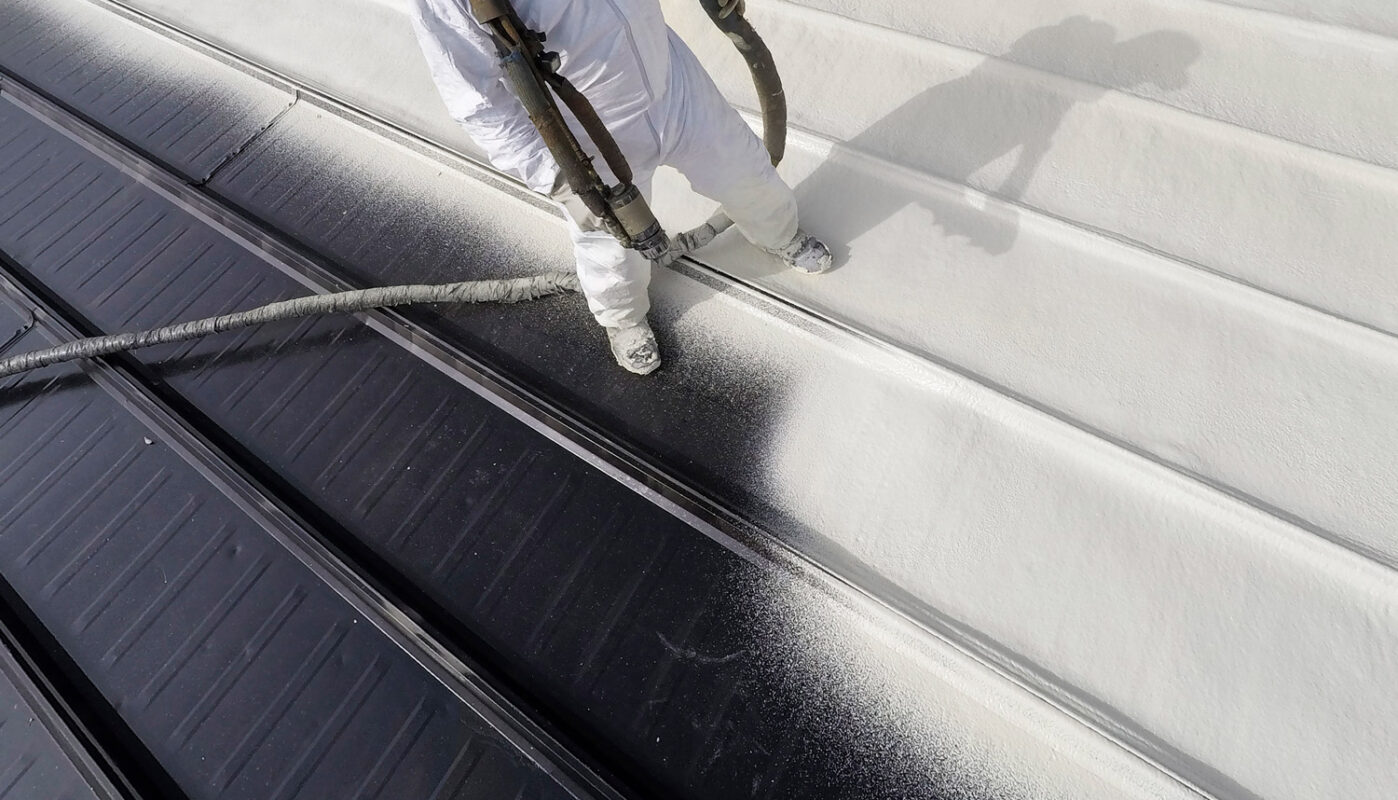

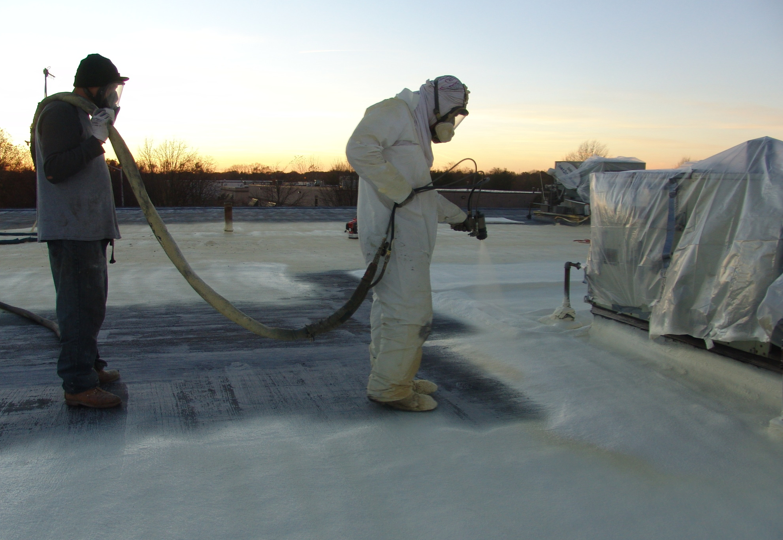

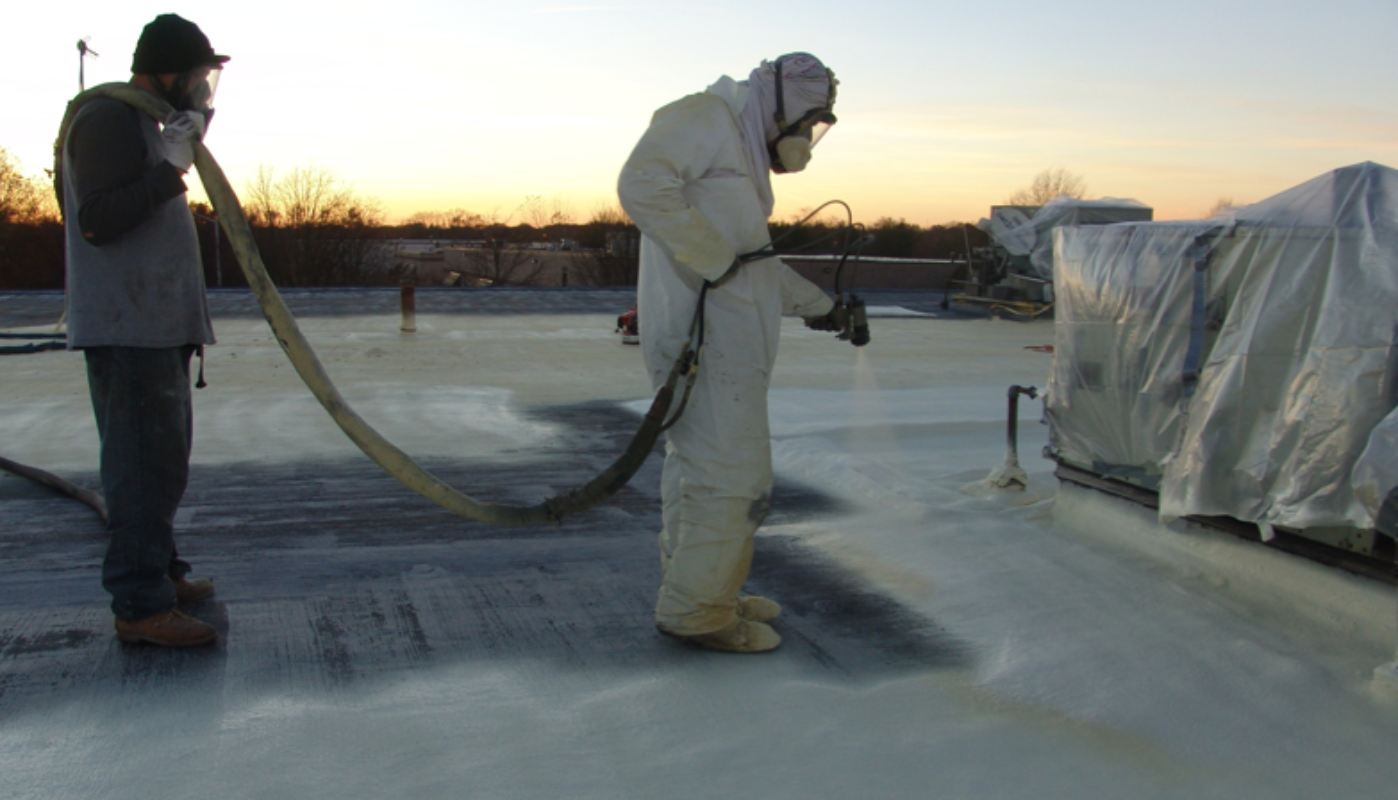

The Ultimate Product for Combo Roofing Insulation: Spray Foam for Combo Roofing Insulation UAE. Ip Harwal Polymer spray foam chemicals are the ideal material for insulating homes with the combo roofing system. The spray foam insulation increases energy efficiency, air quality and, most importantly, the overall comfort of your home. It reduces water leakage, air and moisture intrusion, which calculate into a reduction of energy bills.
The HPSP series is a Spray Polyurethane Rigid foam system developed with the use of various blowing agents. This high-performance Polyurethane Foam for Industrial Building Insulation UAE strengthens the roof and helps to protect the internal air from pollutants and allergens.
Thermal Insulation is internationally accredited to save consumption of electrical power. It is a proven solution to help reduce electricity costs which in turn provides economical revenue to the country and reduces the financial burden on the government.
In addition, thermal insulation in buildings plays a pivotal role in reducing environmental pollution and creates a comfortable atmosphere for the residents of the thermally insulated buildings.
Harwal HPSP 3040 is a high quality specialized Foam System suitable for Residential and Industrial buildings.
Spray Foam
Coming Soon.
Spray Foam
| Typical Formula |
Spray System HP-SP3040 |
Water Based Spray HP-SP-W 3040 |
Water Based Low Density HP-SP 3040 (WLD) |
Spray PIR HP-SPIR 3040 (B2) |
Open Cell Foam HP-SPWC 3040 |
|---|---|---|---|---|---|
| Property | |||||
| Viscosity at 25°C (cPs) | 200 ± 50 | 350 ± 50 | 350 ± 50 | 200 ± 50 | 500 ± 50 |
| Water Content (%) | 1.00 ± 0.10 | 1.50 ± 0.20 | 1.80 ± 0.10 | Nil | 17.7 ± 0.10 |
| Machine Mix Reactivity | |||||
| Component Temperature (°C) | 35 | 35 | 35 | 35 | 35 |
| ISO / Blended Polyol | 100 / 100 | 100 / 100 | 100 / 100 (1:1) | 100 / 100 | 100 / 100 |
| Cream Time (sec) | < 5 | < 5 | < 5 | < 5 | < 5 |
| Gel Time (sec) | < 10 | < 12 | < 10 | < 10 | < 10 |
| Free Rise Density (kg/m³) | 30 ± 1.0 | 40 ± 2.0 | 32 ± 1.0 | 38 ± 2.0 | 10 ± 2.0 |
| Typical Physical Properties | |||||
| Core Density (kg/m³) | 45 ± 2.0 | 53 ± 2.0 | 45 ± 2.0 | 55 ± 2.0 | 10 ± 2.0 |
| Compressive Strength (kPa) | 250 ± 50 | 300 ± 50 | 250 ± 50 | 300 ± 50 | — |
| Dimensional Stability (30°C, 48 hr) % | < 1 | < 1 | < 1 | < 1 | < 3.8 |
| @23°C Thermal Conductivity (mW/m·K) | 21.0 ± 0.50 | 25.0 ± 0.50 | 25.0 ± 0.50 | 21.0 ± 0.50 | 26.0 ± 0.50 |
| Flammability | B3 | B3 | B3 | B2 | B3 |
| R Value (m²K/W) | 50 mm: 2.294 | 50 mm: 2.000 | 50 mm: 2.000 | 50 mm: 2.294 | 50 mm: 1.667 |
| 100 mm: 4.587 | 100 mm: 4.000 | 100 mm: 4.000 | 100 mm: 4.587 | 100 mm: 3.333 | |
